Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine

Большие изображения : Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	Fuchuan
Сертификация:	CE
Номер модели:	FC-650B

Оплата и доставка Условия:

Количество мин заказа:	1 комплект
Цена:	negotiable
Упаковывая детали:	просто упакован
Время доставки:	30 дней
Условия оплаты:	T/T,
Поставка способности:	200sets/месяц

контакт

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine

описание

Производительность пакетирования:	от 2 до 19 проводов	Масса:	1000~3000кг
Тип:	Машины для двойного скручивания	Тип машины:	переплетать машину
Материал:	Медь, алюминий	Одножильный провод:	0.8mm-3.0mm
Власть:	7,5 кВт	Тип управления:	Управление мотора
Приложение:	Связывание и скручивание проволоки	Система управления:	ПЛК Управление с сенсорным экраном
MotorType:	Серводвигатель переменного тока	Емкость:	Большая емкость
Одиночный Dia провода.:	0,15-1,04
Выделить:	650 automatic wire stranding machine , electric cable bunching machine , double twist wire twisting machine

Product Description

Normal Wire High Speed Bunching Machine and Double Twist Bunching Machine

Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects. Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth operation. It is suitable for stranding conductors such as bare copper wire, tinned wire, silver-plated wire, and enameled wire with seven or more strands, and core wire double twist.

Specification

Features

1. Ethernet port is reserved for IoT access, which can display the speed, stranding details, line speed, equipment maintenance, etc.

2. PLC control+Magnetic powder clutch, perfectly ensure the constant tension from empty to full spool.

3. With bearing type polished rod traversing, traversing width and lay length is adjustable.

4. Suitable for stranding of extremely fine conductors (alloy wire, tin-plated wire, silver-plated wire, enameled wire, etc. with seven or more strands) in aerospace, medical devices, mobile phones, laptops, etc.

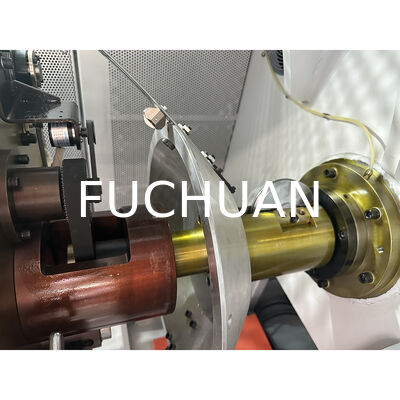

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine 0

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine 1

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine 2

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine 3

Technical Specifications

(Custom configurations available upon request.)

Model	FC-500B	FC-650B	FC-650B pro	FC-800B	FC-651D
Wire dia. (mm)	Φ0.08-0.45	Φ0.15-1.04	Φ0.20-1.70	Φ0.20-1.70	Φ0.16-1.04
Cross section (mm2 )	0.05-2.5	0.35-6.0	1.0-16.0	1.0-16.0	0.4-6.0
Core wire dia. (mm)	Φ0.5-1.5	Φ0.8-3.0	Φ1.5-4.0	Φ1.5-4.0	N/A
Overall Diameter of Stranded Core	Φ1.0-3.0	Φ1.6-6.0	Φ3.0-8.0	Φ3.0-8.0	N/A
Pitch (mm)	6.3-52.3	11.6-100	20-160	23-160	10-100
Spool size (mm)	Φ400-500	Φ500-630	Φ500-630	Φ630-800	Φ500-630
Max speed (rpm)	3000	2000	1600	1600	2000
Stranding direction	S/Z	S/Z	S/Z	S/Z	S/Z
Main motor power	5.5KW	7.5KW	11KW	15KW	7.5KW
Tension control	PLC+Magnetic powder clutch
Protection	Automatic brake on wire break by electromagnetic brake

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine 4

After Sales Service

Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Company Profile

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine 5

Kunshan Fuchuan Electrical & Mechanical Co., Ltd.

Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed by R&D innovation and strict quality control.

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine 6

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine 7

Why Choose Us?

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

Stranding machine

Back-twist bunching machine
Signle twist bunching machine

Torsion-free cable-laying machine

Pay-off machine

Extruding machine

Rewinding machine

Certifications

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine 8

Fuchuan has obtained dozens of certifications and certificates, and hundreds of patents.

With ISO9001

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 60–90 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
